Flex-O-Matic Delineator

Flex-O-Matic Delineator

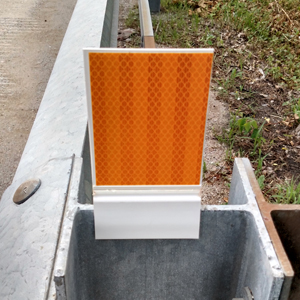

[Image Description: A Flex-O-Matic Delineator mounted on top of a concrete barrier dividing two lanes of traffic.]

HSS Product #300-4

The Flex-O-Matic guardrail delineator has a Urethane flexible hinge that allows the reflector to flex from side to side upon impact. The unit will spring back to the upright position if struck by an object. The Urethane hinge allows the marker to rebound indefinitely. This ensures the delineator will stay in position even after an object strike. This eliminates the need to continually replace delineators especially in cold climates where snow and ice from snow plows can easily damage them.

The Flex-O-Matic “X” flex hinge creates a mechanical bond between the hinge and the base of the delineator. The Urethane “X” hinge remains flexible even in cold conditions. The result is a long lasting, impact resistant delineator.

The Flex-O-Matic Guardrail Delineator 300-4 is 4.25” high and 3.25” wide. 12 square inches of reflective sheeting is applied on one or both sides. Sheeting type is applied per State Specifications. Installation consists of the contractor applying adhesive on the top and sides of the I-Beam web where the delineator is to be installed. The U-channel clip slides down over web of the I-Beam with installation only taking a matter of seconds per post. Detailed installation instructions are provided with product delivery.
